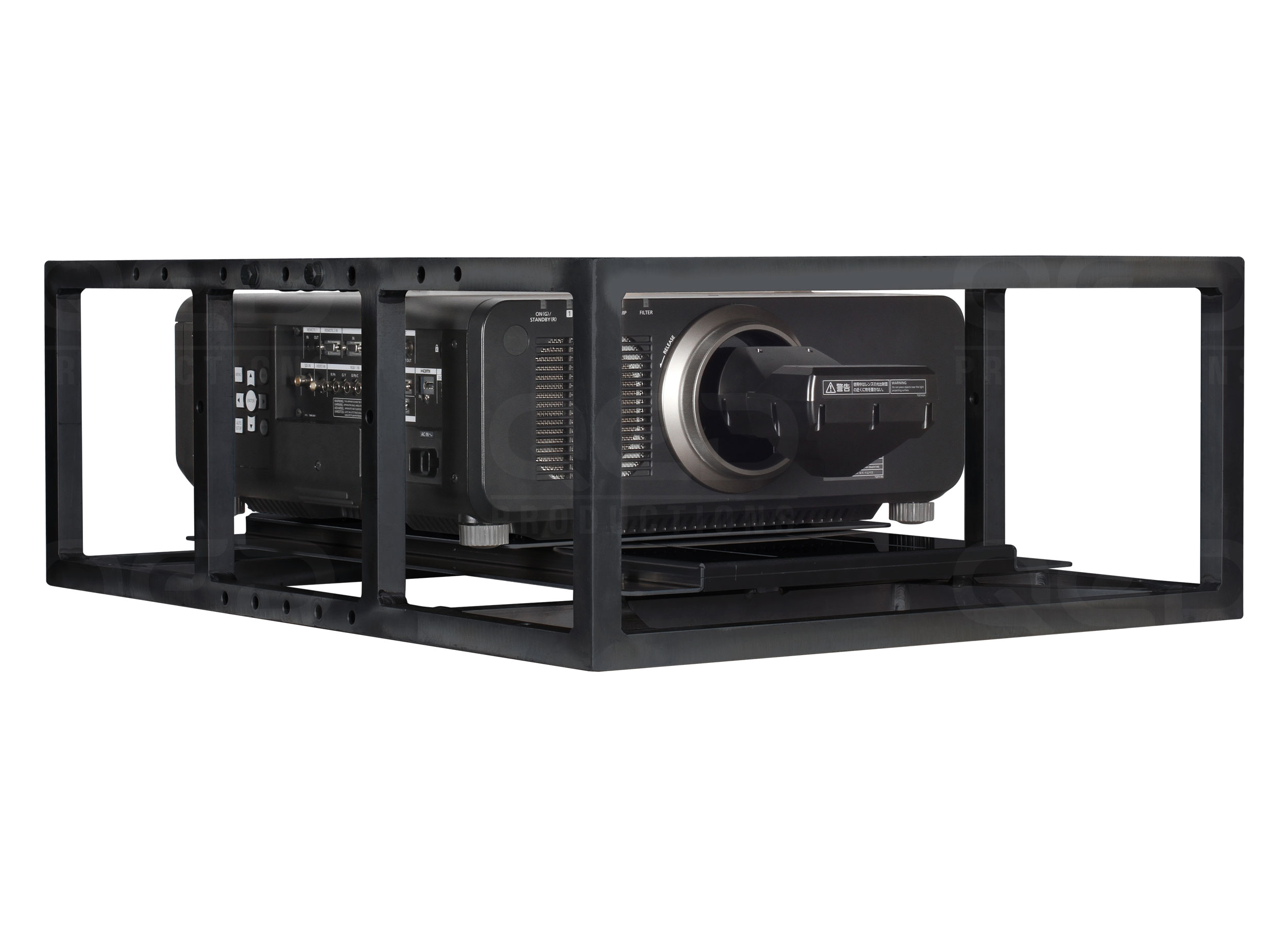

Panasonic PT-RZ970 laser projector

1920 x 1200 resolution - 10,000 lumens

Overview

With immersive picture quality and practical features, the PT-RZ970 Series' potential application extends from permanent installation in museums, theaters, and control rooms through roles in signage, exhibition/rental, and staging. Powered by the acclaimed SOLID SHINE Laser drive and latest 1-Chip DLP™ technology, the PT-RZ970 Series exceeds expectations with low-maintenance stability and vivid color performance maintained for longer than competitive products over years of 24/7 operation.

Features

Harnessing full-spectrum colour with up to 10,000 lumens brightness
Superior white balance and colour reproduction
SOLID SHINE laser maintains picture quality for longer
Dynamic light control for high contrast
Detail clarity processor 3 sharpens the finest details
System daylight view 3 for sharp and vivid images in bright environments
Dust-resistant airtight optical block
Stable 24/7 operation with light-source failover protection
Unique contrast sync and shutter sync function
Multi-screen support system seamlessly connects multiple screens
Multi-unit brightness and colour control
Geometric adjustment for custom screen surfaces
Geometry manager pro software
Single-cable DIGITAL LINK control and video connection
Free 360-degree rotation
Supports Art-Net DMX, Crestron Connected™, and PJLink™
Backup input setting optimizes performance
Quick start, quick off
Multi monitoring & control software
Web browser control

Technical Specification

Power supply 100-240 V AC, 10.4-5.0 A, 50/60 Hz
Power consumption 1,050 W, (770 W with OPERATING MODE set to ECO,
480 W with OPERATING MODE set to LONG LIFE 1,
440 W with OPERATING MODE set to LONG LIFE 2,
390 W with OPERATING MODE set to LONG LIFE 3,
85 W with OPERATING MODE set to SHUTTER*1)
(0.2 W with STANDBY MODE set to ECO,
3 W with STANDBY MODE set to NORMAL,
85 W with QUICK STARTUP set to ON.)
DLP™ chip Panel Size: 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
Display method: DLP™ chip x 1, DLP™ projection system
Pixels: 2,304,000 (1,920 x 1,200) pixels
Light source Laser diodes laser Class 1, light source life: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode). At this time the brightness will have decreased to approximately half of its original level.
Brightness 10,000 lumens (Center)
Center-to-corner uniformity 90%
Contrast 10,000:1 (Full on/off, with Dynamic Contrast Mode set to "3" )
Resolution 1,920 x 1,200 pixels
Scanning frequency SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i(525i), 576i(625i)
HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p
3G-SDI: SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, [YPBPR 4:2:2 10-bit] 1080(1125)/60p, 1080(1125)/50p
HDMI/DVI-D/DIGITAL LINK: 480i (525i), 576i (625i), 480p (525p), 576p (625p), 720 (750)/60p, 720 (750)/50p, 1080 (1125)/60i, 1080 (1125)/50i, 1080 (1125)/25p, 1080 (1125)/24p, 1080 (1125)/24sF, 1080 (1125)/30p, 1080 (1125)/60p, 1080 (1125)/50p, VGA (640 x 480)-WUXGA (1920 x 1200) (compatible with non-interlaced signals only), dot clock: 25-162 MHz
RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz
YPBPR (YCBCR): fH: 15.75 kHz, fV: 60 Hz [480i (525i)], fH: 15.63 kHz, fV: 50 Hz [576i (625i)], fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p], fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i], fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i], fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p], fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p], fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]fH: 31.50 kHz, fV: 60 Hz [480p (525p)], fH: 31.25 kHz, fV: 50 Hz [576p (625p)], fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p], fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i], fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p], fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF], fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Video/YC: fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical: +50 %, -16 % (powered)
Horizontal: +30 %, -10 % (+28 %, -10 % with ET-DLE085) (powered)
Keystone correction range Vertical: ±40° (±22° with ET-DLE085/DLE055, +5° with ET-DLE030), horizontal: ±15° (cannot be operated with ET-DLE030)
Installation Ceiling/floor, front /rear, free 360-degree installation
Terminals SDI IN: BNC x 1 (3G/HD/SD-SDI)
HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
RGB 1 IN: BNC x 5 (RGB/YPBPR/YCBCR/YC/Video x 1)
RGB 2 IN: D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
SERIAL/MULTI PROJECTOR SYNC IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL/MULTI PROJECTOR SYNC OUT: D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN: M3 x 1 for wired remote control
REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
LAN/DIGITAL LINK: RJ-45 x 1 (for network, DIGITAL LINK connection, 100Base-TX, compatible with Art-Net, PJLink™)
Cabinet materials Molded plastic
Dimensions (W x H x D) 498mm x 200mm x 556mm (19-19/32 x 7-7/8 x 21-7/8 in) without frame
Weight Approximately 22.1kg (48.6lbs) without frame
Operation noise 41dB
Operating environment Operating temperature: 0-45 °C (32-113 °F), operating humidity: 10-80 % (no condensation)
