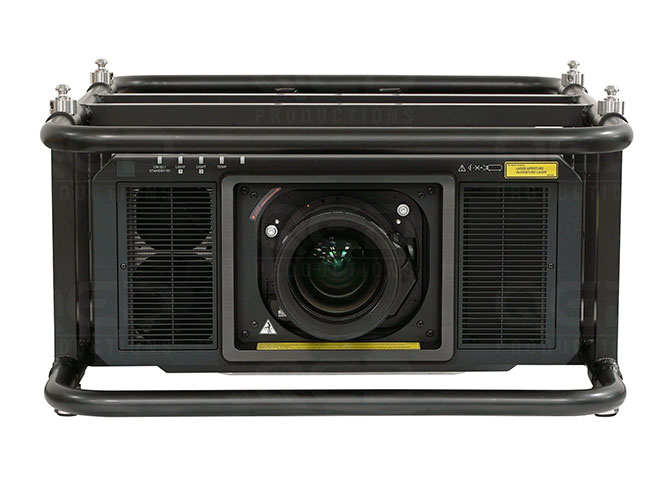

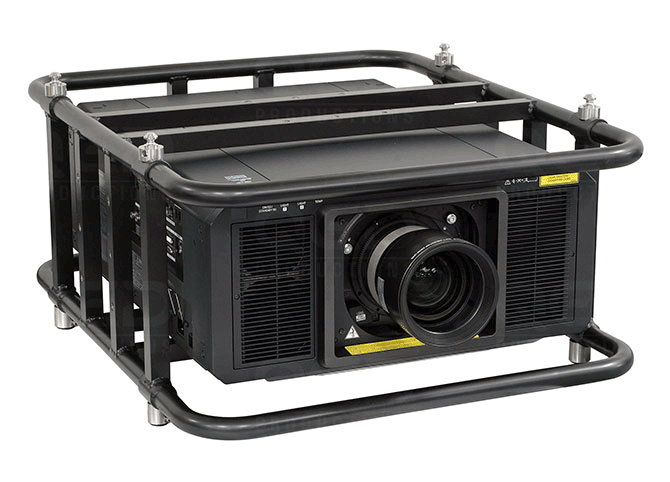

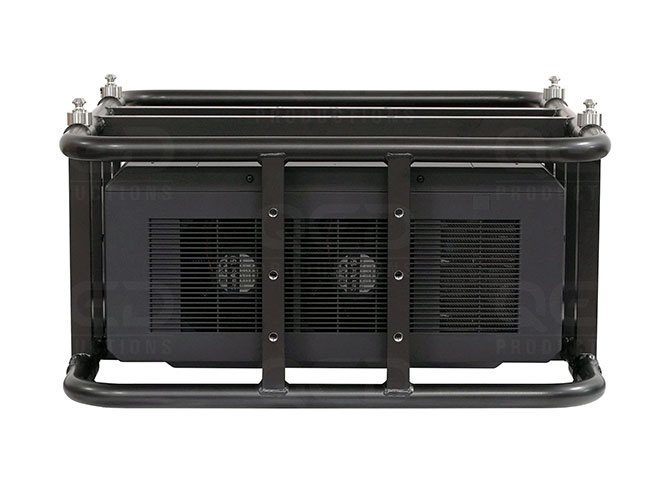

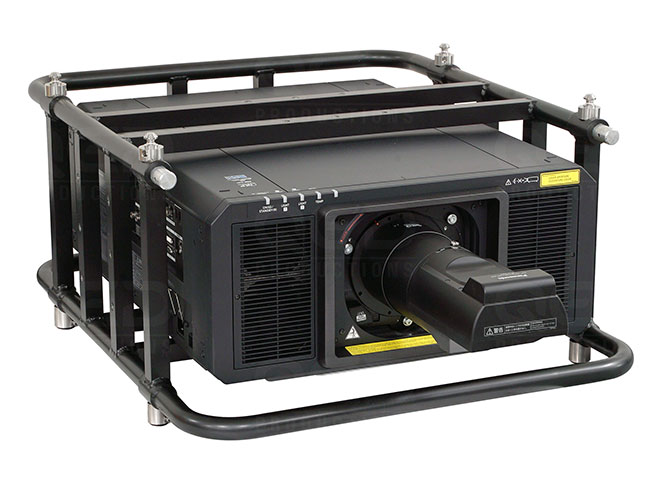

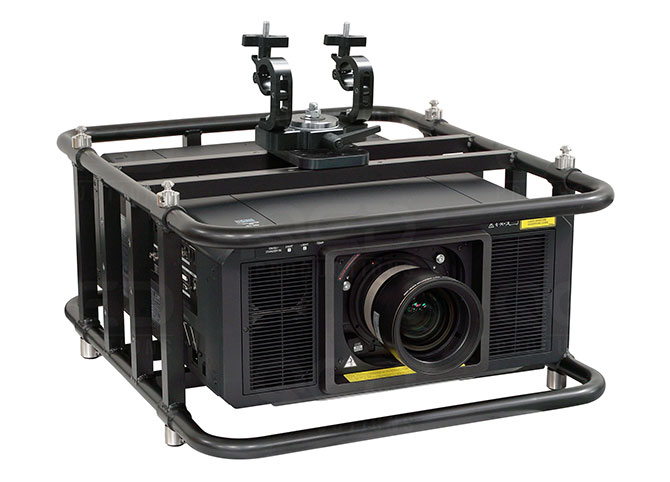

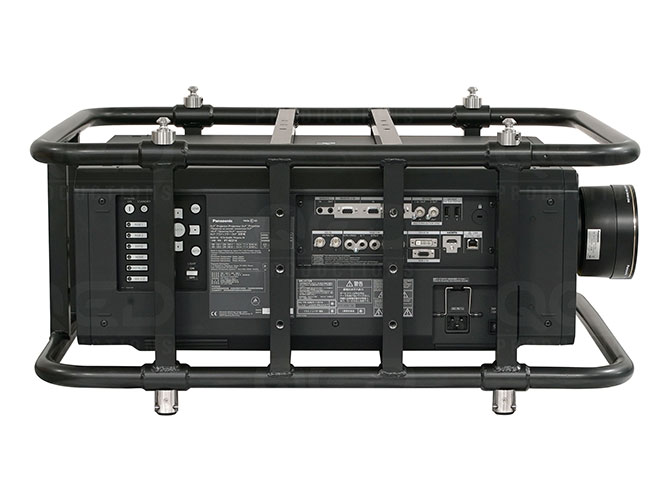

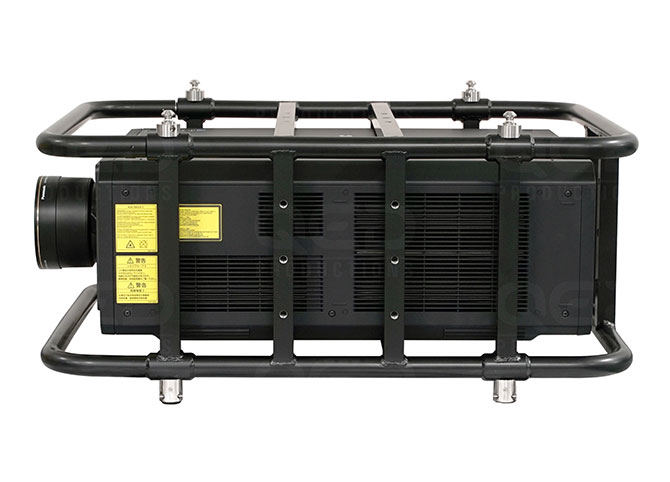

Panasonic PT-RZ21K laser projector

1920 x 1200 resolution - 20,000 lumens - SOLID SHINE Laser

Overview

Panasonic's groundbreaking PT-RZ21K Series 3-Chip DLP™ SOLID SHINE Laser projector combines flagship picture quality produced by the PT-DZ21K Series projector - current leader in multi-screen events staging - with the compact size and incredible durability of the mid-range PT-RZ970 Series laser projector. The PT-RZ21K Series is the world's first 20,000 lm laser projector to feature a filterless cooling system and shielded optical unit, delivering unassailable reliability in dusty conditions. Handling is effortless with just two technicians. With software for expedited multi-screen mapping calibration, the rugged yet lightweight PT-RZ21K Series delivers class-beating colour reproduction.

Features

Bright and Vivid Picture Quality from 3-Chip DLP™ SOLID SHINE Laser
Precision Color Reproduction
Dual-Laser Optical Engine Assures Failsafe Reliability
The World's First Filterless Design for 20,000 lm Laser Projector
120 Hz Real Motion Processor Reduces Motion Blur
Detail Clarity Processor 5
Dynamic Contrast Function for High 20,000:1 Contrast
System Daylight View 3
Selectable Operational Modes
90% Brightness Uniformity
Free 360-degree Installation
Contrast Sync and Shutter Sync Function
Single-Cable DIGITAL LINK Connection
Backup Input Guarantees Picture Display
3D Projection Capability
New Multi Monitoring & Control Software
Quick Start and Quick Off
Laser Safety Guaranteed
Built-in Geometric Adjustment
Multi-screen Support System
Multi-Unit Brightness and Color Control
Art-Net DMX, Crestron Connected™, and PJLink™
DICOM Simulation Mode
Waveform Monitor Function
Power Management Reduces Downtime

Technical Specification

Power supply AC 200 V-240 V, 7.7 A, 50/60 Hz (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.6 A].)
Power consumption 1,510 W (0.3 W with Standby Mode set to ECO, 4 W with Standby Mode set to NORMAL)
Panel size 24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
Display method DLP™ chip x 3, DLP™ projection system
Pixels 6,912,000 (1920 x 1200 x 3) pixels
Refresh rate 120 Hz
Light source Laser Diode (Laser class: Class 1), Light source life: 20,000 hours (NORMAL Mode, brightness decreases to approx. 50%) / 24,000 hours (ECO Mode, brightness decreases to approx. 50%)
Screen size (diagonal) 1.78-25.4 m (70-1,000 in) with 16:10 aspect ratio
1.78-15.24 m (70-600 in) with the ET-D75LE8, 16:10 aspect ratio
3.05-15.24 m (120-600 in) with the ET-D75LE95, 16:10 aspect ratio
Brightness 21,000 lm (Center) / 20,000 lm
Center-to-corner uniformity 90%
Contrast 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)
Resolution 1920 x 1200 pixels
RGB fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or less
Video/YC fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)
Optical axis shift (from center of screen) Vertical: ±55 % (±44 % with ET-D75LE6, +68 % - +78 % with ET-D75LE95) (powered)
Horizontal: ±20 % (±15 % with ET-D75LE6, ±12 % with ET-D75LE95) (powered)
Keystone correction range Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±15°
Installation Horizontal/vertical, free 360-degree installation
Cabinet materials Molded plastic
Dimensions (W x H x D) 598 x 270 x 725 mm (23 17/32" x 10 5/8" x 28 17/32") (not including protruding parts or frame)
Weight (without frame) 49.0 kg (108 lbs)
Operation noise 46 dB
Operating environment Operating temperature: 0-50 °C (32-122 °F); Operating humidity: 10-80 % (no condensation)
