Panasonic PT-DZ870

1920 x 1200 resolution - 8,500 lumens

Overview

Panasonic has raised the level of its top-end 1-chip DLP™ projector even further with the new PT-DZ870 Series. It features many of the advanced functions that are found in Panasonic's flagship 3-chip DLP™ projectors. It also includes the Dynamic RGB Booster, which achieves stunning image quality with high levels of color reproduction and brightness, and an optical block with dust-resistant structure. These features enable a degree of color reproduction that approaches our highest level projectors, and a raised level of reliability. Geometric adjustment, portrait projection, 3D projection, and multi-screen projection further increase flexibility in use. If you want truly creative imaging, you'll find it in the PT-DZ870 Series.

Technical Specification

Power supply 120-240 V AC, 10-5.2 A, 50/60 Hz
Power consumption 1,030 W (1,060 VA)
(0.3 W when STANDBY MODE set to ECO, 3 W when STANDBY MODE set to NORMAL)
Dissipation BTU 3,516 BTU/hour
(without light PT-DZ870/DW830: 3,400 BTU/hour, PT-DX100: 3,379 BTU/hour)
DLP™ chip panel size 17.0 mm (0.67 in) diagonal
(16:10 aspect ratio)
DLP™ chip display method DLP™ chip x 1, DLP™ projection system
DLP™ chip pixels 2,304,000
(1,920 x 1,200) pixels
Lamp 420 W UHM lamp x 2
Brightness 8,500 lumens
(dual-lamp, LAMP MODE: NORMAL)
Center-to-corner uniformity 90%
Contrast 10,000:1 (full on/full off, in dynamic iris 3 mode)
Resolution 1,920 x 1,200 pixels
Optical axis shift - Vertical +50 % from center of screen (powered)
Optical axis shift - Horizontal ±10 % from center of screen (powered)
Keystone correction range Vertical ±40°
Horizontal ±15°
Terminals SDI: BNC x 1 (3G/HD/SD-SDI)
HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
RGB 1 IN: BNC x 5 (RGB/YPBPR/YCBCR/YC x 1)
RGB 2 IN: D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
3D SYNC 1 IN/OUT: BNC x 1 (3D timing signal)
3D SYNC 2 OUT: BNC x 1 (3D timing signal)
VIDEO IN: BNC x 1 (composite video)
SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT: D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN: M3 x 1 for wired remote control
REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
LAN / DIGITAL LINK: RJ-45 x 1 (for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™, Deep Color, compatible with HDCP)

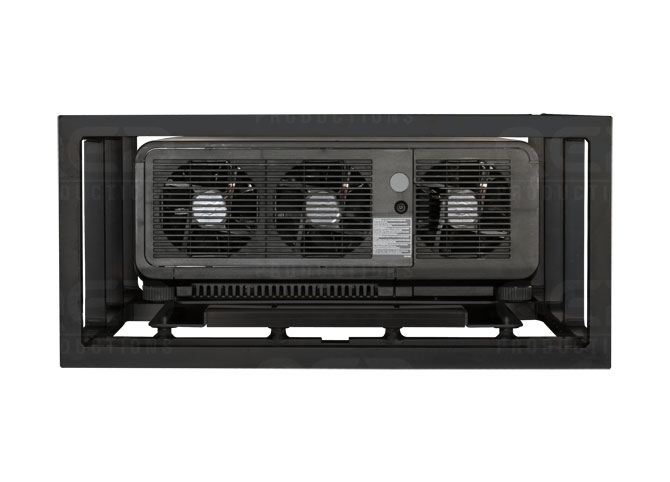

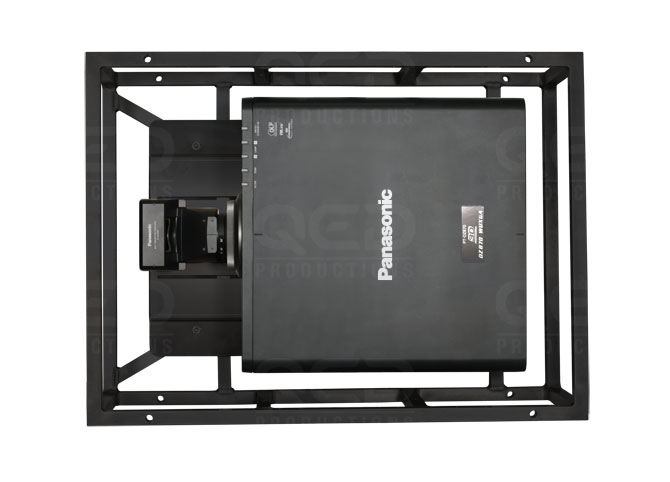

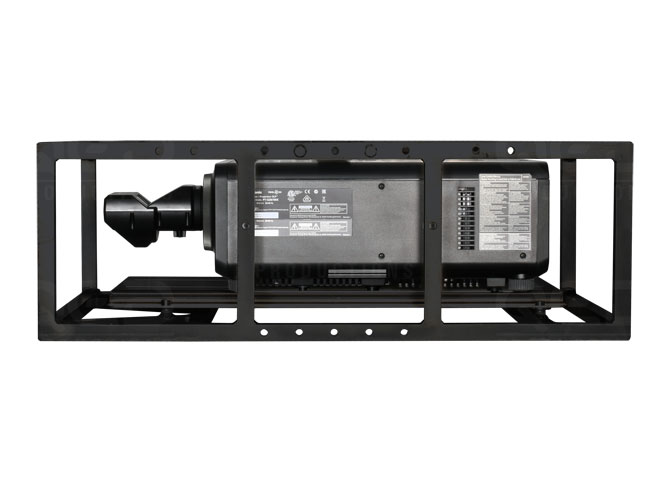

Dimensions (W x H x D) 498mm x 200mm x 556mm (19-19/32 x 7-7/8 x 21-7/8 in) without frame
Weight Approximately 18.3 kg (40.3 lbs) without frame
Operation noise 40 dB (dual lamp operation, lamp mode: NORMAL),
35 dB (dual lamp operation, lamp mode: ECO)
Operating environment Operating temperature: 0-45 °C (32-113 °F), operating humidity: 10-80% (no condensation)
