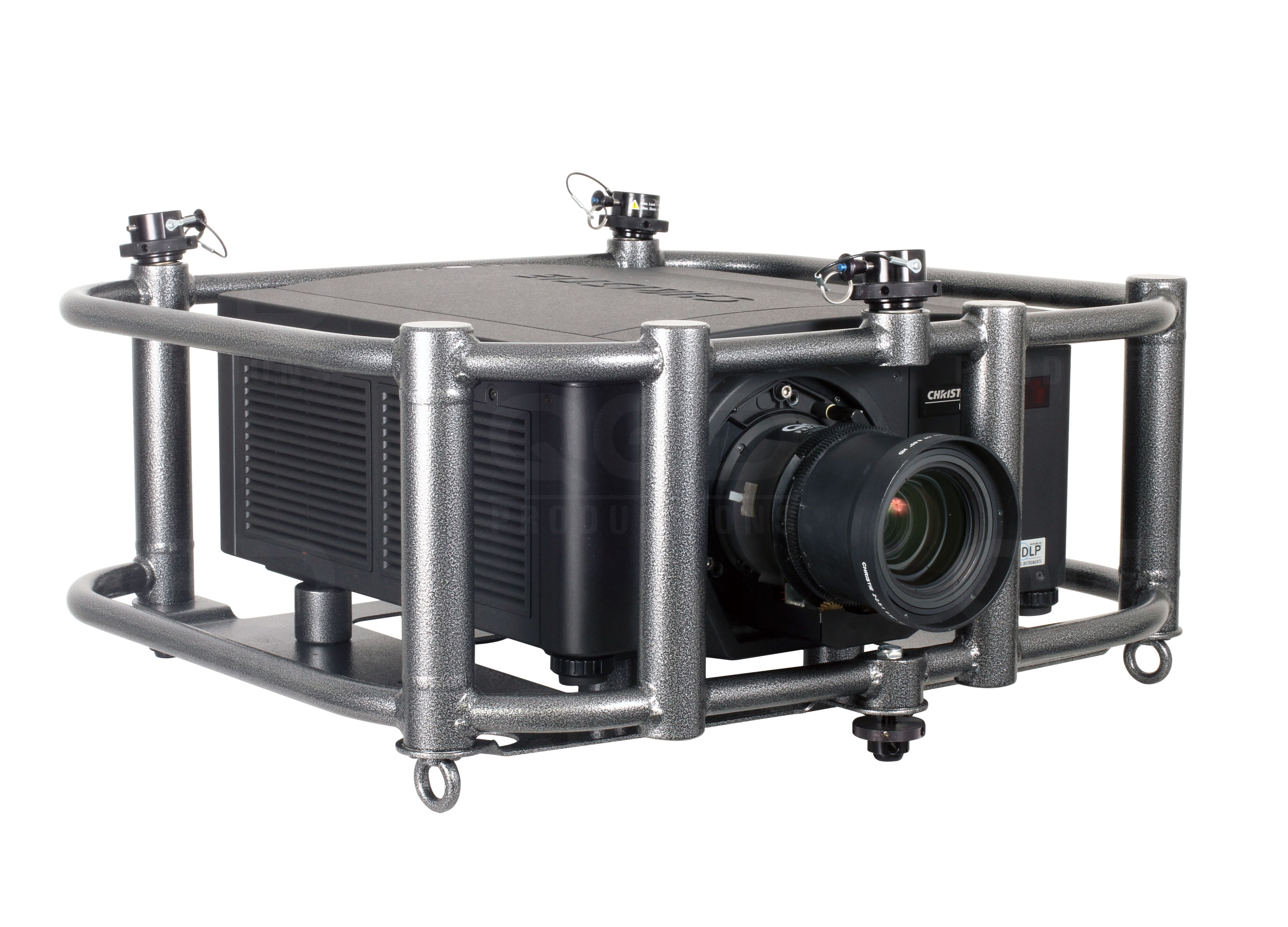

The Christie Mirage WU12K-M delivers more pixels, and more performance for visually stunning 3D for home theatre and entertainment, museums and education, scientific research, manufacturing, oil and gas exploration and anything in between. Offering complete compatibility with today’s 3D home entertainment requirements, the Christie Mirage WU12K-M is ready for Blu-ray 3D video, PS3 and other gaming consoles and meets the mandatory 3D spec for HDMI v1.4a.
With dual image processing capabilities, there are three modes of 3D input - native 3D input, frame doubled 3D and Dual Input 3D for maximum source compatibility and high-performance flicker-free operation without the need of a passive to active converter.
The Christie Mirage WU12K-M features 10,500 ANSI lumens, WUXGA resolution and up to 10,000:1 contrast.
With dual image processing capabilities, there are three modes of 3D input - native 3D input, frame doubled 3D and Dual Input 3D for maximum source compatibility and high-performance flicker-free operation without the need of a passive to active converter.
The Christie Mirage WU12K-M features 10,500 ANSI lumens, WUXGA resolution and up to 10,000:1 contrast.
10,500 ANSI lumens |
WUXGA resolution (1920 x 1200) |
Up to a full 120Hz native frame rate |
Standard full 330MHz Dual Link DVI-D |
Variable contrast ratio using electronically adjustable iris for crisp, detailed images - 2500-10,000:1 (full on, full off) / 650:1 ANSI |
At maximum brightness the projector draws a maximum power of 1320W |
Smallest chasis in its class |
Motorised yellow notch filter |
Dual Osram® PviP® lamps (350W) |
Embedded Christie Twist™ image warping and edge-blending |
Dust-sealed engine, filter-free design |
Intelligent Lens System (ILS™) for zoom, focus, horizontal and vertical offset |
Image |
10,500 ANSI Lumens 2,500-10,000:1 FOFO 650:1 ANSI Electronically adjustable iris (manual or dynamic) 80% brightness uniformity |
Display Technology and Resolution |
3-chip 0.96" DMD Native WUXGA 1920 x 1200 Frame delay: As little as one frame |
Input Signal Compatibility |
Native Dual Link DVI-D Analog BNC (Optional) Frame-doubled 3D - Dual Link DVI, VGA (HDMI, Analog BNC & SDI optional) Pixel Clock: 330 Mhz Scan Rates: H - 15kHz to 120kHz V – 23.97Hz to 150Hz (up to 120Hz maximum output) |

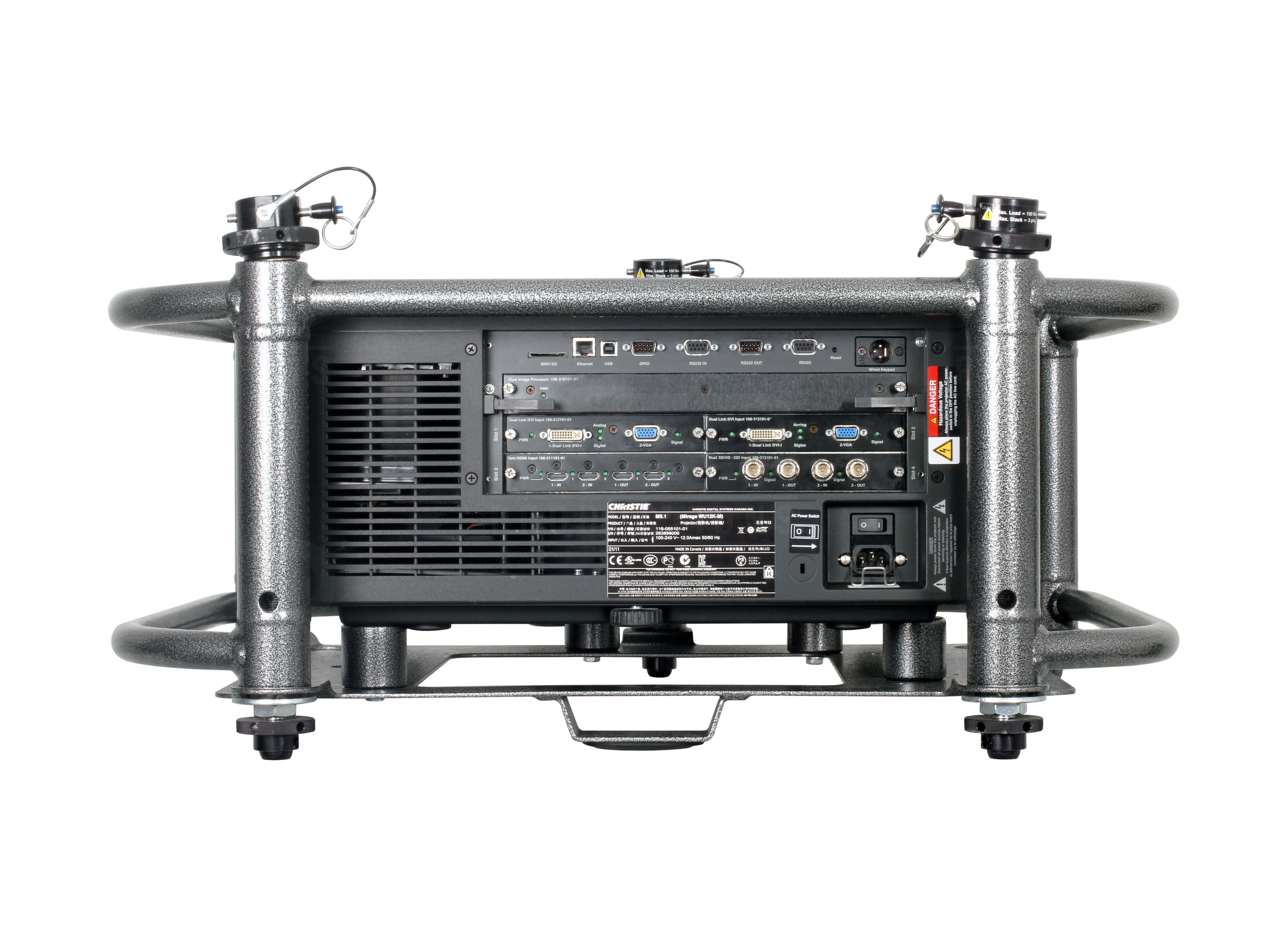

Inputs, Control & Networking |
RS232 in/out RS422 in Ethernet (10/100) USB device GPIO (RS232 9-pin male connector) Built-in backlit LCD keypad Remote control (with optional wired XLR connection) Slot 1 standard (populated): Dual link DVI-D (330MHz) and VGA (165MHz) Slots 2-4 unpopulated Full bandwidth Analog BNC Dual Link DVI input card (330MHz), \- VGA (165MHz) Dual SD/HD-SDI Video Decoder Twin HDMI Two standard Dual Link DVI input cards (330MHz) |
Optional Input Modules |
Slots 3-4 unpopulated Full bandwidth Analog BNC Dual Link DVI input card (330MHz), \- VGA (165MHz) Dual SD/HD-SDI Video Decoder Twin HDMI Two standard Dual Link DVI input cards (330MHz) |
Inputs, Control and Networking |
RGBHV/YPbPr via 5 BNC DVI-I - digital/analog RGB/YPbPr (HDCP) One composite video, one S-Video Two option slots for analog/digital modules 3 RS-232 ports and 1 RS-422 port On-board ChristieNET™ connectivity (RJ45) Built-in backlit keypad and IR remote control |
Optical System |
Lens mount: Motorized horizontal and vertical lens offset Scheimpflug (tilt) adjustment Built-in light shutter Tool-free lens insertion system Illumination: Dual Osram® PviP® 350W lamps Lamp Life (Typical): 1500hrs @ 350W, 2000hrs @ 300W |
Advanced Feature Set |
Embedded Christie Twist™ - internal advanced warping and edge-blending LiteLOC™ Electronically adjusted iris (manual or dynamic) Dust-sealed, filter-free design Reduced power requirements (as compared to competitive products on the market today) – at maximum brightness the unit only draws 1320W; standby power consumption (Phantom power draw) is less than 20W Reduced noise levels LCD keypad – active keys are amber to indicate whether function selected will be seen by the audience Motorised yellow notch filter |
Power Requirements |
100V AC to 240V AC @ 50/60Hz Power consumption: 1320W maximum Thermal dissipation: 4,508 BTU/hr Operating current: 12A @ 100V |
Dimensions (excluding lens) |
Weight: 25kg (55 lb) (without lens) Shipping weight: 38kg (87 lb) (without lens) Size: (W x L x H): 55 x 561 x 259mm (19.7" x 22.1" x 10.2") |
Operating Environment |
Operating temperature: 40-104°F (5-40°C) Humidity (non-condensing): 20-80% non-condensing |
